FEATURES

SAFETIES APPROVALS

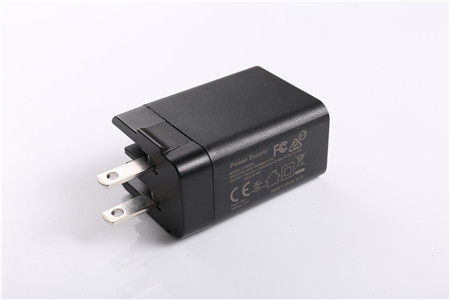

PRODUCTS PICTURE

❖▪EFFICIENCY VI

❖▪20WATT OUTPUT POWER

❖▪OVERCURRENT PROTECTION

❖▪SHORT CIRCUIT PROTECTION

❖▪INPUT PROTECTION

❖▪ROHS COMPLIANT

❖ UL

❖ FCC

❖ CE

❖ SAA

❖ROHS

❖ REACH

TYPICAL MODEL LIST

I/P Voltage

Typical model

Output

Function

Output USB

Efficiency

90 - 264V

47 - 63HZ

C1902XZ

5V3A

9V2.22A

12V1.67A

PD

Single type-c port

VI

INPUT SPECIFICATIONS

GENERAL SPECIFICATIONS

Input Voltage

90〜264VAC

Primary to Secondary

50MΩ MIN

Input Frequency

47〜63Hz

Efficiency

VI

Input Current

05.A Max

Standby Power

0.1W MAX

Inrush Current

60A Max

Leakage Current

0.25mA MAX

OUTPUT SPECIFICATIONS

ENVIRONMENTAL SPECIFICATIONS

Output Voltage

5V / 9V / 12 V

Operating Temperature

10°C~40°C

Output Current

3A / 2.22A / 1.67A

Cooling

Convection

Output Power

20W

Temperature Coefficient

0.05%/°C

Short Circuit Protection

Automatic Recovery

Humidity

5~95%RH(non-condensing)

Over-Current Protection

Automatic Recovery

Storage Temperature

-20°C~+80%°C

Ripple and Noise

100mVp-p max

PHYSICAL SPECIFICATIONS

Turn On Time

20-30mS normal

Physical Specifications

69.6mm * 42mm * 30.6mm

Line Regulation

1% max

SAFETIES STANDARD

Output Regulation

±5%

Safeties Standard

62368

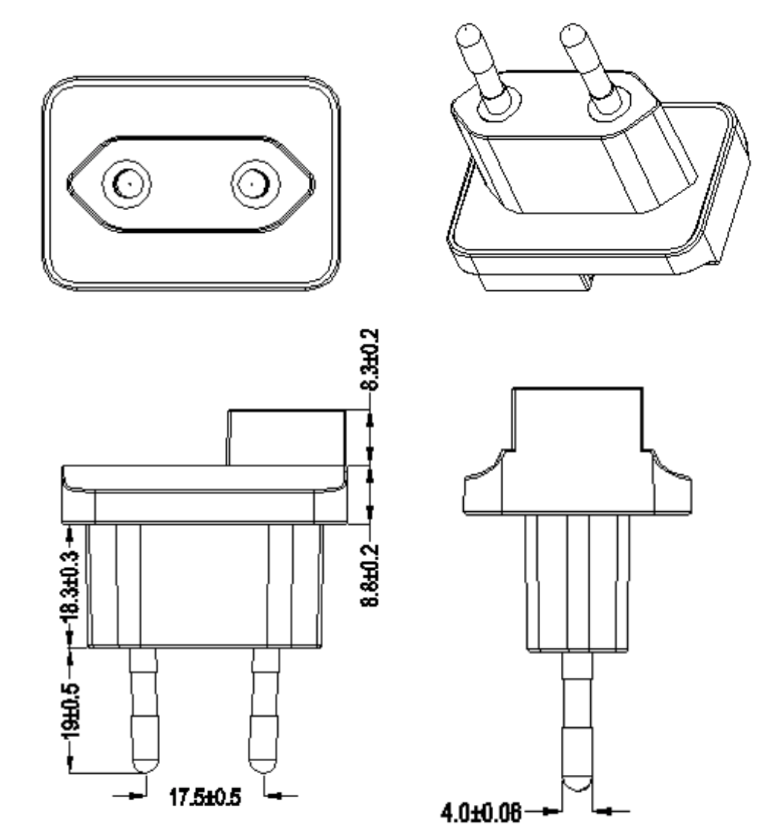

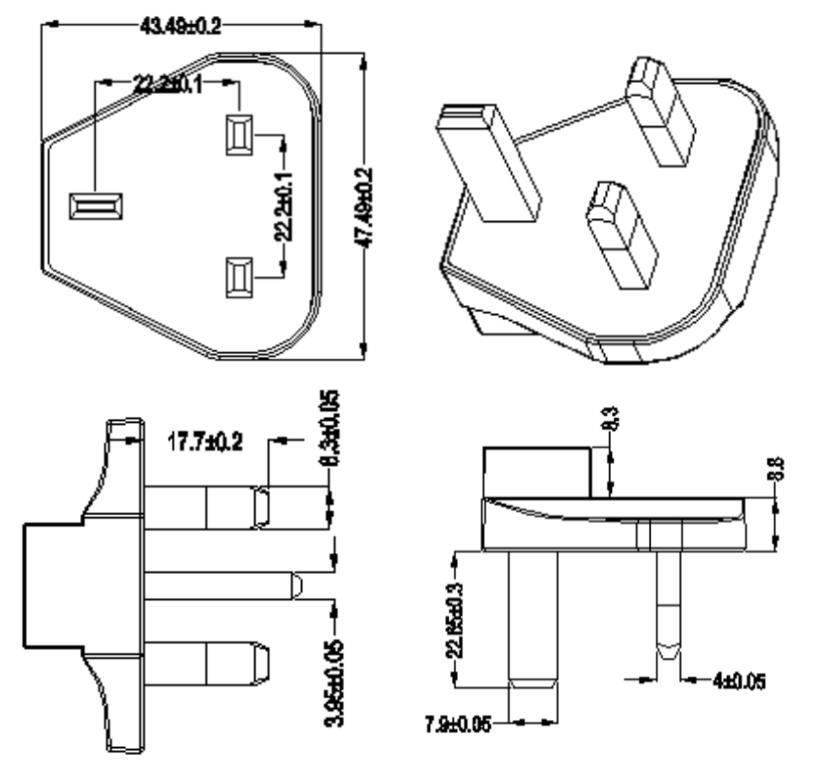

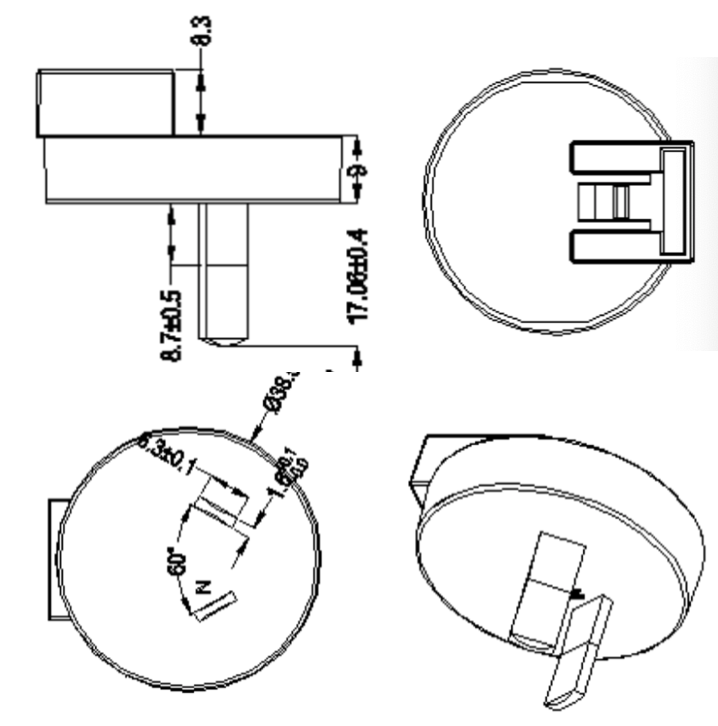

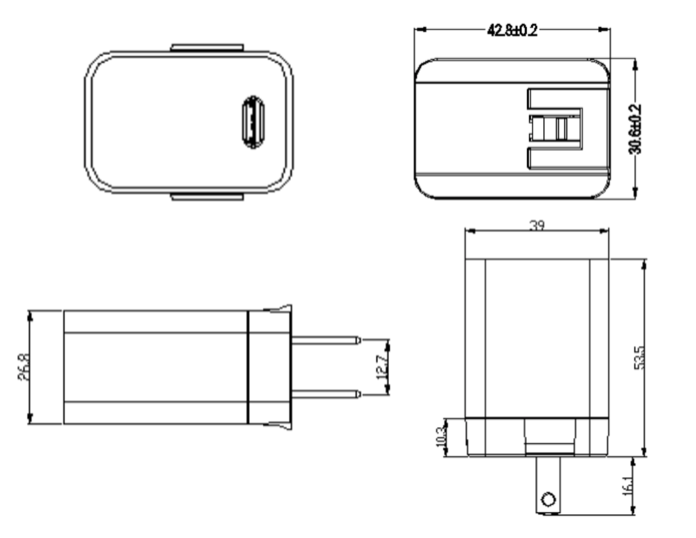

MECHANICAL SPECIFICATION

PACKING DETAILS

300pcs/carton,15kg/carton

Carton size: 47*36.5*19cm
