Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China | ||||

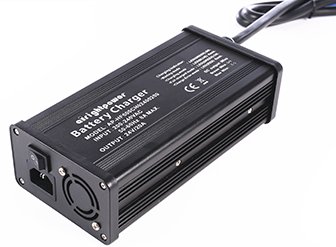

Specifications | PRODUCTS PICTURE | |||
450W BATTERY CHARGER l AC Input Voltage Range :AC100V-AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:12V～90V l Output Current:20A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC（-40ºF～+185ºF） l Dimensions (mm):(L)204х(W)100х(H)55 l Net Weight: 1.5kg |
| |||
TYPICAL MODEL LIST | ||||
Charger Model | Rated Input Voltage | Battery Standard Voltage | Maximum charging voltage | Maximum charging Current |
AP-PF450CH01460200 | 100-240 | 12 | 14.6 | 20 |
AP-PF450CH02920150 | 100-240 | 24 | 29.2 | 15 |
AP-PF450CH04200100 | 100-240 | 36 | 42 | 10 |
AP-PF450CH05460080 | 100-240 | 48 | 54.6 | 8 |
AP-PF450CH07140060 | 100-240 | 60 | 71.4 | 6 |
AP-PF450CH08400050 | 100-240 | 72 | 84 | 5 |
AP-PF450CH01200200 | 100-240 | 12 | 14.7 | 20 |
AP-PF450CH02400150 | 100-240 | 24 | 29.4 | 15 |
AP-PF450CH03600100 | 100-240 | 36 | 44.1 | 10 |
AP-PF450CH04800080 | 100-240 | 48 | 58.8 | 8 |
AP-PF450CH06000060 | 100-240 | 60 | 73.5 | 6 |
AP-PF450CH07200050 | 100-240 | 72 | 88.2 | 5 |
SPECIFICATIONS | ||||
AC Input Voltage Range： | AC100V-AC240V | Shock & Vibration： | 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes | |
AC Input Frequency： | 45～65HZ | Operating Temperature： | -20ºC～45ºC（-20ºF～+113ºF） | |
AC Power Factor Correction： | ≥0.98 | Storage Temperature： | -40ºC～+85ºC（-40ºF～185ºF） | |
Output Voltage： | 12V～90V | Dimensions (mm)： | (L)203х(W)100х(H)55 | |
Output Current： | 20A（Max） | Net Weight： | 1.5kg | |
Full Load Efficiency： | ≥90% | certifications | UL CE FCC RoHs | |
Protections | Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it | |||
Short- circuit Protection When Short Circuit happened ,charger will turn off | ||||
Reverse Connection Protection When the battery’s polarity is reversed ,the charger will cut off the connection between the circuit and the battery | ||||
Battery Broken protection When open circuit happened ,the battery can not be 100% full-charged ,charger will be shut down automatically | ||||
Application | Forklift/ground washer/electric motorcycle and so on | |||

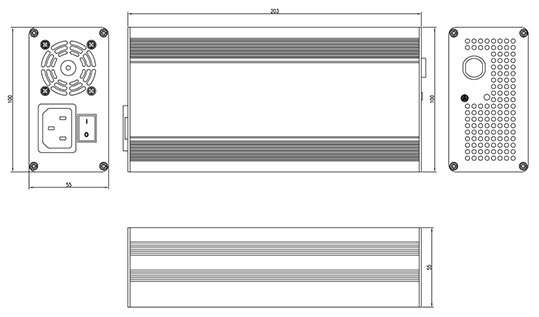

MECHANICAL SPECIFICATION | PACKING DETAILS | |||
|
1.5kg/pcs 12pcs/Carton Carton size: 535*315*280mm
| |||
