Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China | ||||

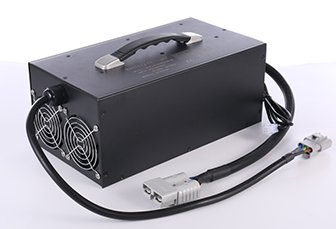

Specifications | PRODUCTS PICTURE | |||
3600W BATTERY CHARGER l AC Input Voltage Range ：AC 220V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:24V～90V l Output Current:120A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC（-40ºF～+185ºF） l Dimensions (mm): (L)315х(W)177х(H90 l Net Weight: 9kg |
| |||
TYPICAL MODEL LIST | ||||
Charger Model | Rated Input Voltage | Battery Standard Voltage | Maximum charging voltage | Maximum charging Current |
AP-PF3600CH02921200 | 220 | 24 | 29.2 | 120 |
AP-PF3600CH04201000 | 220 | 36 | 42 | 100 |
AP-PF3600CH05460700 | 220 | 48 | 54.6 | 70 |
AP-PF3600CH07140600 | 220 | 60 | 71.4 | 60 |
AP-PF3600CH08400500 | 220 | 72 | 84 | 50 |
AP-PF3600CH02401200 | 220 | 24 | 29.4 | 120 |
AP-PF3600CH03601000 | 220 | 36 | 44.1 | 100 |
AP-PF3600CH04800700 | 220 | 48 | 58.8 | 70 |
AP-PF3600CH06000600 | 220 | 60 | 73.5 | 60 |
AP-PF3600CH07200500 | 220 | 72 | 88.2 | 50 |
SPECIFICATIONS | ||||
AC Input Voltage Range： | AC 220V | Shock & Vibration： | 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes | |
AC Input Frequency： | 45～65HZ | Operating Temperature： | -20ºC～45ºC（-20ºF～+113ºF） | |
AC Power Factor Correction： | ≥0.98 | Storage Temperature： | -40ºC～+85ºC（-40ºF～185ºF） | |
Output Voltage： | 24V～90V | Dimensions (mm)： | ( (L)315х(W)180х(H90 | |
Output Current： | 120A（Max） | Net Weight： | 9kg | |
Full Load Efficiency： | ≥90% | certifications | UL CE FCC RoHs | |
Protections | Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it | |||
Short- circuit Protection When Short Circuit happened ,charger will turn off | ||||
Reverse Connection Protection When the battery’s polarity is reversed ,the charger will cut off the connection between the circuit and the battery | ||||
Battery Broken protection When open circuit happened ,the battery can not be 100% full-charged ,charger will be shut down automatically | ||||
Application | Electric motorcycle/Golf cart/Sightseeing car/Cleaning car/Low speed car and so on | |||

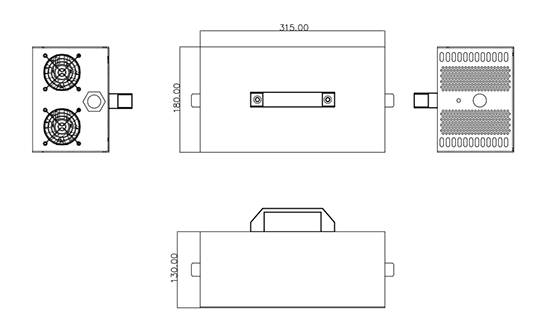

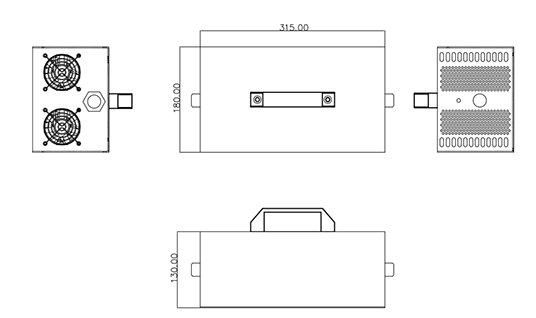

MECHANICAL SPECIFICATION | PACKING DETAILS | |||
|
9kg/pcs 2pcs/Carton Carton size: 615*520*235mm | |||
