Shenzhen YingYuan Electronics Co., Ltd Address:The 4-7th Floor, Building 8, HongYe Industrial Park, XiXiang Town, BaoAn District, ShenZhen, China | ||||

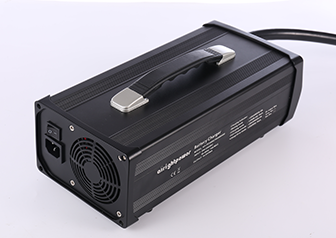

Specifications | PRODUCTS PICTURE | |||
1800W--2400W BATTERY CHARGER l AC Input Voltage Range ：AC100V-AC240V l AC Input Frequency: 45～65HZ l AC Power Factor Correction: ≥0.98 l Output Voltage:24V～90V l Output Current:60A(Max) l Full Load Efficiency: ≥90% l Shock & Vibration: 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes l Operating Temperature: -20ºC～+45ºC(-20ºF～+113ºF) l Storage Temperature: -40ºC～+85ºC（-40ºF～+185ºF） l Dimensions (mm): L)300х(W)140х(H)90 l Net Weight: 4.5kg |
| |||
TYPICAL MODEL LIST | ||||
Charger Model | Rated Input Voltage | Battery Standard Voltage | Maximum charging voltage | Maximum charging Current |
AP-PF1800CH02920450 | 100-240 | 24 | 29.2 | 45 |
AP-PF1800CH04200300 | 100-240 | 36 | 42 | 30 |
AP-PF1800CH05460240 | 100-240 | 48 | 54.6 | 24 |
AP-PF1800CH07140180 | 100-240 | 60 | 71.4 | 18 |
AP-PF1800CH08400150 | 100-240 | 72 | 84 | 15 |
AP-PF1800CH02400450 | 100-240 | 24 | 29.4 | 45 |
AP-PF1800CH03600300 | 100-240 | 36 | 44.1 | 30 |
AP-PF1800CH04800220 | 100-240 | 48 | 58.8 | 22 |
AP-PF1800CH06000180 | 100-240 | 60 | 73.5 | 18 |
AP-PF1800CH07200150 | 100-240 | 72 | 88.2 | 15 |
AP-PF2400CH02920600 | 220V | 24 | 29.2 | 60 |
AP-PF2400CH04200500 | 220V | 36 | 42 | 50 |
AP-PF2400CH05460400 | 220V | 48 | 54.6 | 40 |
AP-PF2400CH07140300 | 220V | 60 | 71.4 | 30 |
AP-PF2400CH08400250 | 220V | 72 | 84 | 25 |
AP-PF2400CH02400600 | 220V | 24 | 29.2 | 45 |
AP-PF2400CH03600500 | 220V | 36 | 44.1- | 30 |
AP-PF2400CH04800380 | 220V | 48 | 58.8 | 24 |
AP-PF2400CH06000300 | 220V | 60 | 73.5 | 30 |
AP-PF2400CH07200250 | 220V | 72 | 88.2 | 25 |
SPECIFICATIONS | ||||
AC Input Voltage Range： | AC100V-AC 240V | Shock & Vibration： | 10～50HZ 2G 10 minutes，X，Y，Z /60 minutes | |
AC Input Frequency： | 45～65HZ | Operating Temperature： | -20ºC～45ºC（-20ºF～+113ºF） | |
AC Power Factor Correction： | ≥0.98 | Storage Temperature： | -40ºC～+85ºC（-40ºF～185ºF） | |
Output Voltage： | 24V～90V | Dimensions (mm)： | (L)300х(W)140х(H)90 | |
Output Current： | 60A（Max） | Net Weight： | 4.5kg | |
Full Load Efficiency： | ≥90% | certifications | UL CE FCC RoHs | |
Protections | Thermal Self-Protection Charger will be stopped automatically when reaches to Maximum temperature , LED light will be red to warn it | |||
Short- circuit Protection When Short Circuit happened ,charger will turn off | ||||
Reverse Connection Protection When the battery’s polarity is reversed ,the charger will cut off the connection between the circuit and the battery | ||||
Battery Broken protection When open circuit happened ,the battery can not be 100% full-charged ,charger will be shut down automatically | ||||
Application | Electric motorcycle/Golf cart/Sightseeing car/Cleaning car/Low speed car and so on | |||

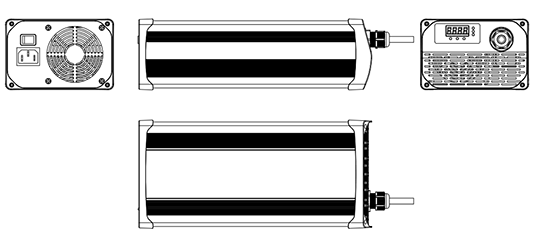

MECHANICAL SPECIFICATION | PACKING DETAILS | |||
|
4.5kg/pcs 4pcs/Carton Carton size: 475*422*375mm
| |||
